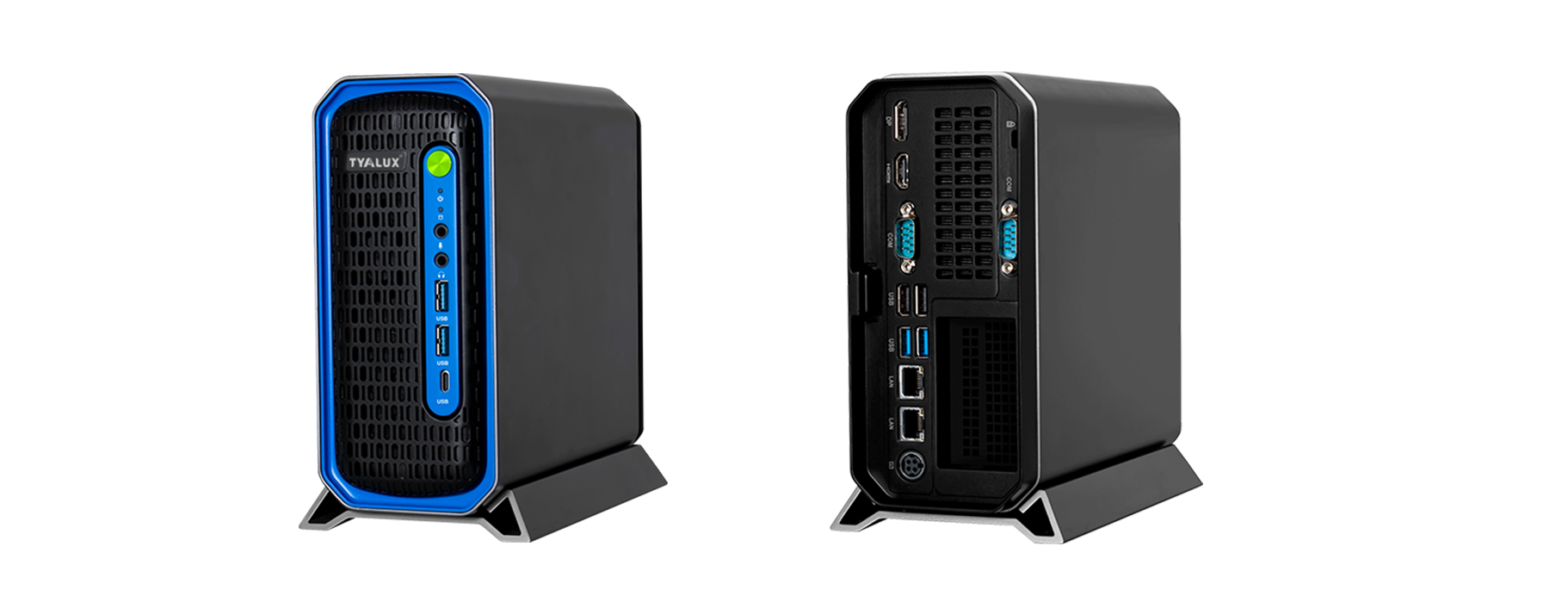

TYL-PC-99900

Adopting Intel 12/13/14th Gen. Core Processors

The workstation adopts Intel® B760 chipset, and it can support Intel® 12th/13th/14th generation socket type processors (TDP≤65W). It supports dual-channel DDR5 memory and it’s optimized for AI training and inference, stable diffusion, Llama, LLMs, speech/image recognition, and generative AI.

Supporting Low Profile Graphics Cards

TYL-PC-99900 features a PCIe X16 slot for expanding PCIe-powered low profile graphics cards. The workstation has the power to deploy and manage cognitive technology platforms within the data science and AI space – including machine learning and deep learning workloads such as generative AI and computer vision.

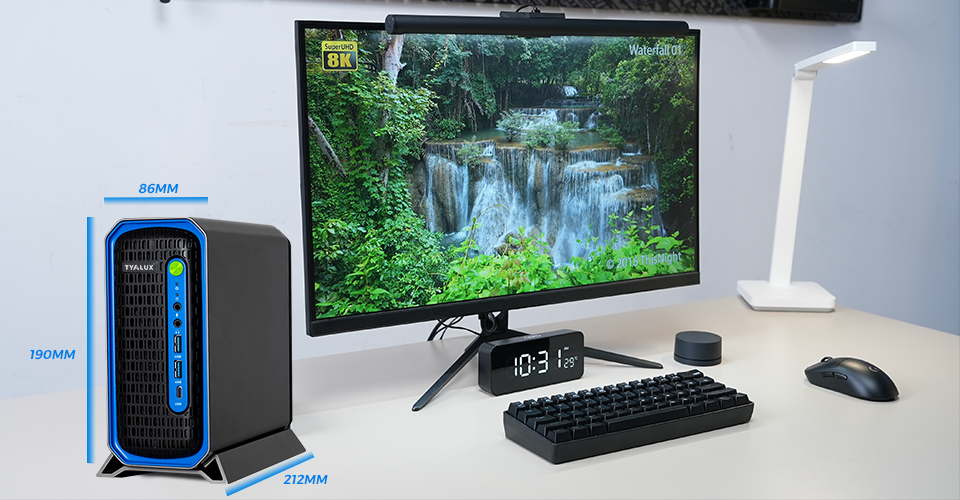

Compact Structure with Patent Design

Measuring only 3.46L, the TYL-PC-99900 features a patented design that ensures high hardware performance. It uses solid materials without redundancy, balancing heat dissipation and aesthetics, making it suitable for small to medium-sized businesses and personal studios.

The TYL-PC-99900 provides users with powerful expandability.

It offers 2 M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/

write speeds of 5 GB/s (40Gbps).

The TYL-PC-99900  provides one USB-C and six high-speed

USB-A ports, along with two COM and two Ethernet ports (

one 1GbE and one 2.5GbE). It also includes an M.2 slot

reserved for expanding Wi-Fi modules, addressing the data

transfer needs of the workstation.

CPUCPU
Intel® Core™ i5-13400 processor
Intel® Core™ i7-13700 processor

Chipset

B760

Total Cores

10 Cores /16 Cores
Total Threads16 /22
TDP65 W /65 W
MemorySizeUp to 96 GB
Type
2 x SO-DIMM DDR5-5600 MHz
StorageSocket 1
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Socket 2
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Socket 31 x SATAIII
Graphics

iGPU

Intel® UHD Graphics 730/770
Graphics Card
1 x PCIe X16 slot for Graphics Cards
GPU Cards Standardize
PCIe-powered (Max. Power Consumption 75W)
Low Profile Card (Max. Dimension 6.6” x 2.7”)
Front I/O

USB

1 x USB Type-C3.2 Gen2, 2 x USB3.2 Gen2

Audio

1 x MIC-IN, 1 x AUDIO-OUT

LED1 x HDD_LED, 1 x PWR_LED

Button

1 x Power on

Rear I/O

Display Interface

1 x DP1.4 (Max. 7680 x 4320@60Hz, iGPU)
1 x HDMI2.0 (Max. 4096 x 2304@60Hz, iGPU)

Serial port1 x RS232, 1 x RS232/422/485
USB2 x USB3.2 Gen1, 2 x USB2.0
Ethernet1 x 2.5GbE RJ45, 1 x 1 GbE RJ45

Antenna

2 x Internal Wi-Fi Antenna

System
Network Controller
1 x Realtek RTL 8111H Gigabit Ethernet
1 x Intel Ethernet Controller I226-V
Wi-Fi/BT
1 x E-Key (2230) for Wi-Fi/BT, Support Wi-Fi 6 /6E (CNVi)
TPM
Optional: TPM2.0
Power Requirement
DC-IN, 19 V/12.1 A
Dimensions
212 mm x 190 mm x 86 mm (8.87” x 7.48” x 3.38”)
Construction
Gray Aluminum Case, Black/Blue Plastic Panel
Operating System
Windows 11 (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 40°C (non-condensing)
Certifications
CE, FCC Class B, UKCA
