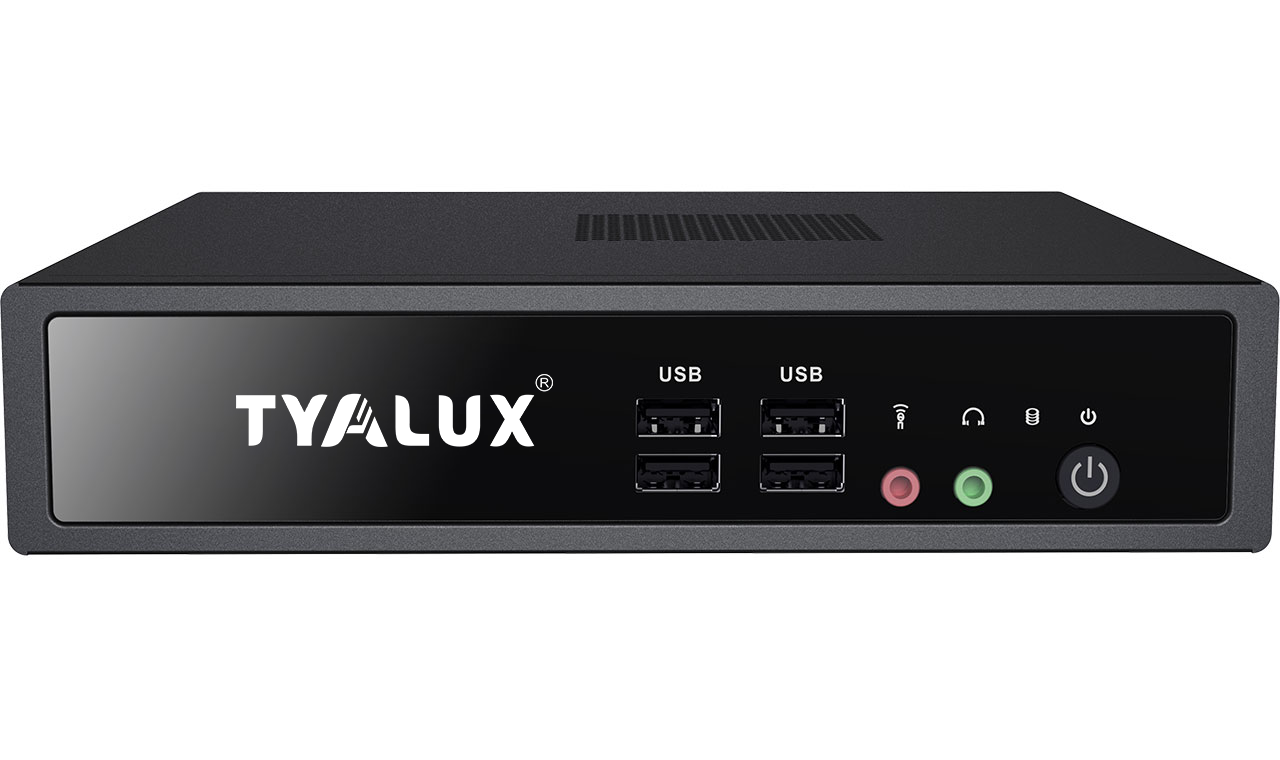

Thin Client
TYL-TC-36100
Product Features:
Intel® LGA1151 Socket supporting 8th/9th Gen processors
Dual-channel SO-DIMM DDR4 memory (up to 32GB)
Dual display support: 1 x VGA (DP optional), 1 x HDMI™ with 4K@60Hz output
Expansion interfaces:
• 1 x Mini-PCIe (for 3G/4G/mSATA)
• 1 x M.2 (2242/2280) for SSD storage
• 1 x M.2 (2230) for WiFi expansion

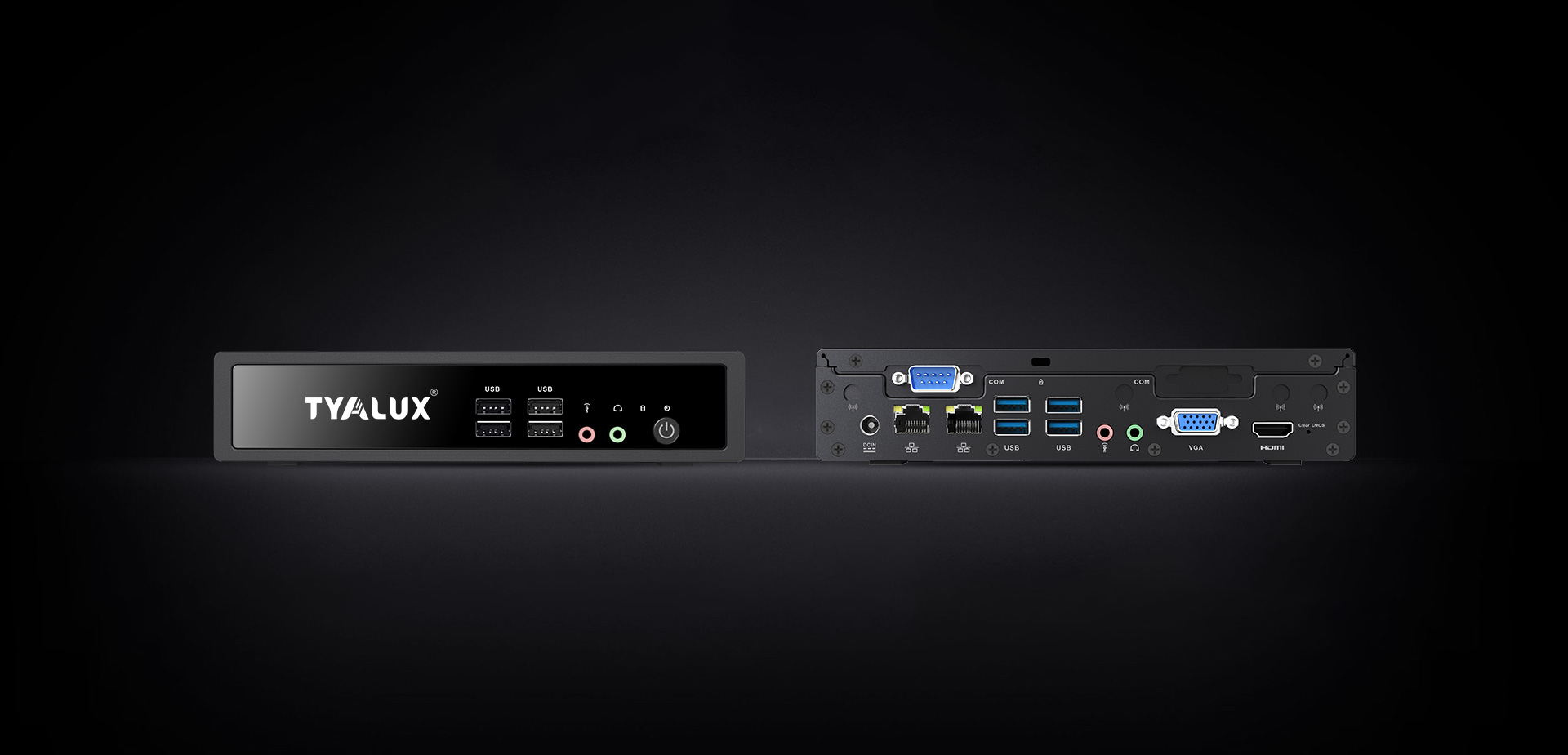

Connectivity:
• 4 x USB 3.0 + 4 x USB 2.0 ports
• 2 x RS232 serial ports
• 2 x RJ45 LAN ports
• 1 x SIM card slot
Supports High-Reliability Unattended Operation Technology (JAHC)
Unparalleled Performance, Seamless Experience
Supports high-performance desktop processors:SkyLake/KabyLake/CoffeeLake platforms.65W TDP (thermal design power)
Dual-channel SO-DIMM DDR4 memory
Experience enhanced computing power and fluid operations.
Multi-Screen Modes, 4K Brilliance
1xVGA (DP optional), 1xHDMI™ display
Supports dual-screen output up to 4K@60Hz
Flexible mode selection: Extended /Duplicate /Independent

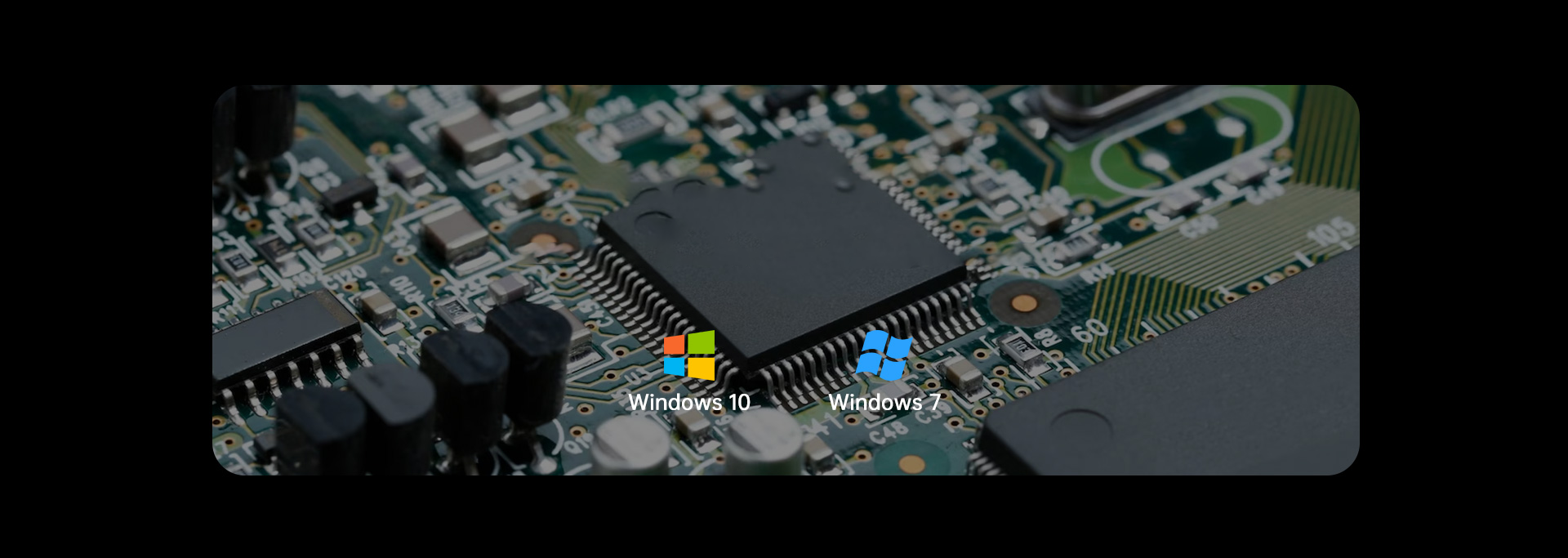

Outstanding Performance, Flexible Configuration
Featuring multi-layer PCB design with premium passive components
Supports custom processor options (including Celeron®, Pentium®) and multiple OS choices (Windows® 7/10)
Specification
| Processor | CPU | Intel® LGA1151 Socket 8th/9th generation processors (TDP ≤ 65W) |
| Chipset | H310 | |
| BIOS | AMI Source Code | |
| Memory | Specification | DDR4-2666MHz |
| Slots | 2 x SO-DIMM | |
| capacity | Maximum support 32GB | |
| Graphics Processing | GPU | Intel® UHD Graphics |
| Video Interface | 1 x HDMI ™ (Max. 4096 x 2160@60Hz) 1 x VGA (Max. 1920 x 1080@60Hz) or DP (Max. 4096 x 2304@60Hz) | |
| network | Wired network | 2 x RJ45 |
| Wireless network | 1 x Mini-PCIe for 3G/4G & mSATA 1 x SIM card slot 1 x M.2 (2230) for WiFi/BT | |
| I/O | USB | 4 x USB3.2 Gen1(5Gbps), 4 x USB2.0 |
| serial port | 1 x RS232 | |
| Audio Interface | 4 x Audio Jack (2 each at front and rear) | |
| storage | Interface 1 | 1 x M.2 (2242/2280) for SSD |
| Interface 2 | 1 x Mini-PCIe for 3G/4G & mSATA | |
| capacity | ||
| Unattended | JAHC | Watchdog/RTC/LAN wake-up |
| operating system | Windows | Windows 10 (64-Bit) |
| Linux | support | |
| power supply | type | DC-IN |
| Power adapter | 19V/4.74A | |
| Appearance parameters | Dimensions (W x D x H) | 200mm x 180mm x 42mm |
| Material | Metal/Black | |
| Optional Kits | VESA Mounting Kit (JZ200) WIFI Antenna | |
| environment | Operating temperature | 0℃ ~ 45℃ ( 32 ℉ ~ 113 ℉ ) at 0.7m/s Air Flow |
| Operating Environment | 95% @ 40℃ (non-condensing) | |
| Certification | Certification | CE,Rohs |
