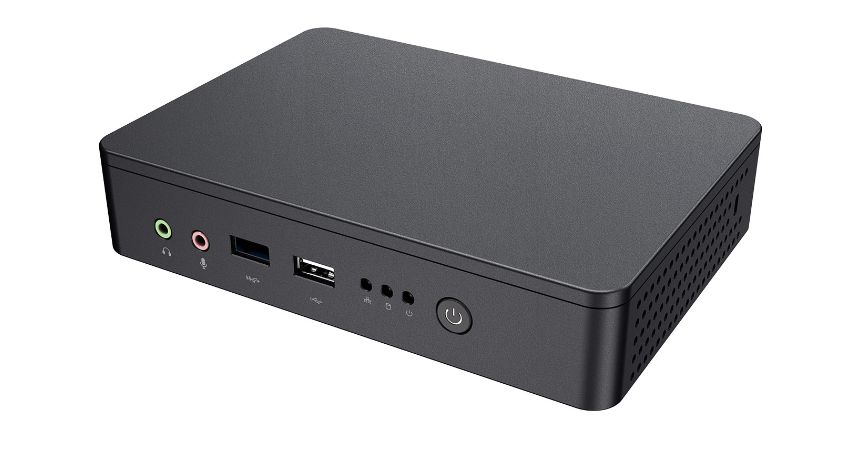

Thin Client
TYL-TC-N100
Product Features:
Utilizes fanless silent cooling design
Powered by Intel Bay-trail platform processor
1 x SO-DIMM DDR3L memory slot (supports up to 4GB)
Dual video outputs: 1 x HDMI™, 1 x VGA
Dual storage solutions: onboard eMMC + 1 x mSATA

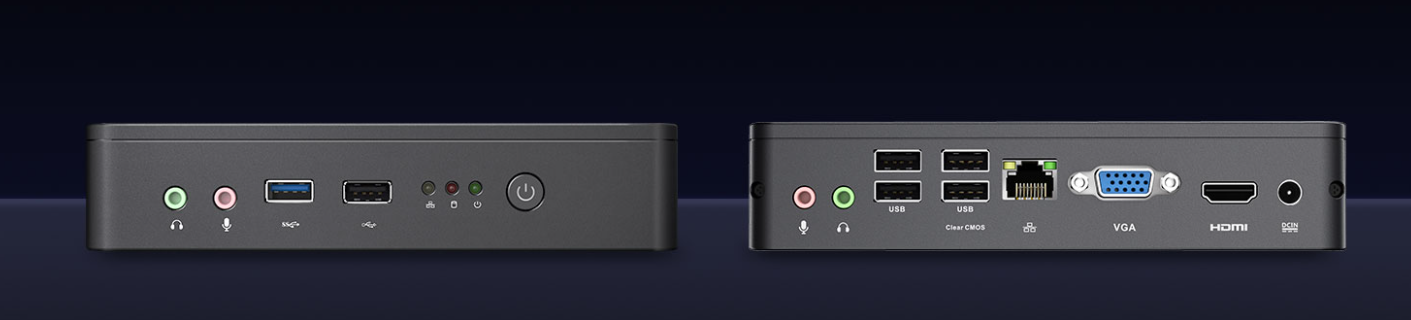

Connectivity: 1 x USB 3.0, 5 x USB 2.0 ports
Supports high-reliability Just Always Highly Available Computing (JAHC) technology for unattended operation
Compact Size, Powerful Core
Powered by Intel® Celeron J1900/J1800/N2800 processors / Trail mobile platform – small but mighty.
10W low power consumption, 2.4GHz base clock speed.
Crystal-Clear Display, Immersive Experience
Dual-screen output with flexible mode selection: extended, duplicate, or independent display modes
1xVGA, 1xHDMI ports supporting up to 2560×1600@60Hz resolution
Outstanding Performance, Flexible Configuration
Featuring multi-layer PCB design with premium passive components
Supports custom processor options (including Celeron®, Pentium®) and multiple OS choices (Windows® 7/10)
Specification
| Processor | CPU | Intel Celeron J1800/J1900/N2807 processor |
| Chipset | SOC | |
| BIOS | AMI Source Code | |
| Memory | Specification | DDR3L |
| Slots | 1 x SO-DIMM | |
| capacity | Maximum support 8GB | |
| Graphics Processing | GPU | Intel® UHD Graphics |
| Video Interface | 1 x HDMI ™ (Max. 2560 x 1600） 1 x VGA (Max. 1920 x 1080 | |
| network | Wired network | 1 x RJ45 |
| Wireless network | 1 x Mini-PCIe for Wi-Fi/BT | |
| I/O | USB | 1 x USB3.2 Gen1, 5 x USB2.0 |
| serial port | ||
| Audio Interface | 4 x Audio Jack (2 each at front and rear) | |
| storage | Interface 1 | 1 x M.2 (2242/2280) for SSD |
| Interface 2 | ||
| capacity | Supports up to 128GB eMMC | |
| Unattended | JAHC | Watchdog/RTC/LAN wake-up |
| operating system | Windows | Windows 7/8.1/10 (64-Bit) |
| Linux | support | |
| power supply | type | DC-IN |
| Power adapter | 12V/3.33A | |
| Appearance parameters | Dimensions (W x D x H) | 170mm x 120mm x 36mm |
| Material | Plastic/Black | |
| Optional Kits | VESA Mounting Kit (JZ200) WIFI Antenna Extension | |
| environment | Operating temperature | 0℃ ~ 45℃ ( 32 ℉ ~ 113 ℉ ) at 0.7m/s Air Flow |
| Operating Environment | 95% @ 40℃ (non-condensing) | |
| Certification | Certification | CE,Rohs |
